Suits S13, S14, S15, R32 GTS-T

324mm Front Brake Upgrade Kit

From: $ 548.00

Includes Free Shipping
Free Australia Wide Postage on Order $250+
Pickup Available
South Kingsville, VIC 3015 | Ready in 1-2 Hours | Mon - Fri 10am to 4pm
Customise your kit

324mm Front Rotors Suits: R33 GTR, R34 GTR

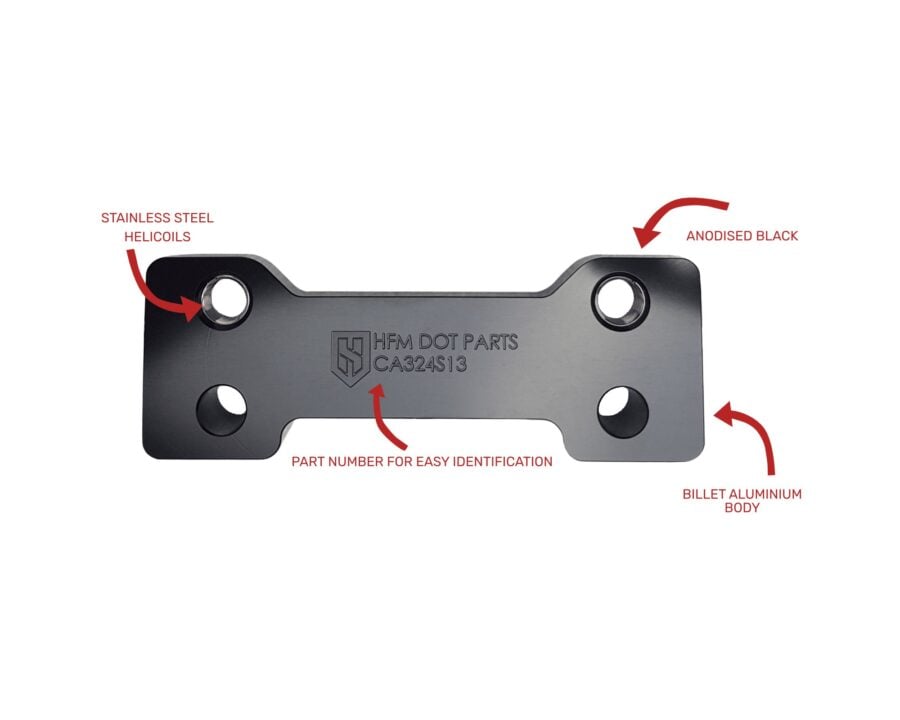

324mm Rotor Caliper Adapter Brackets Suits: S13, S14, S15, R32 GTS-T

$ 189.00
In Stock

R32 GTS-T Front Braided Brake Lines

S Chassis Front Braided Brake Lines

Max Available:

Description

HFM.Parts 324mm Two Piece Rotors are designed in Australia featuring a striking slot design that matches HFM.Parts Rear Rotors. This rotor has an increase of 44mm from the standard OEM 280mm rotors. This is achieved by using HFM.Parts Australian designed and developed custom caliper adapter set which enables you to use your OEM caliper. Making this a very affordable big brake upgrade kit. The indentations on the rotor surface have a slight curvature to improve cleaning ability and ventilation, paired with a black anodized aluminium hat to complete the overall look and performance of the rotor.

DIMENSIONS.
Diameter 324 mm
Height 53.8 mm
Thickness 30 mm
Minimum Thickness 28 mm
Centre Hole 68 mm
Stud Holes 5
Weight 7.4kg/rotor

REPLACEMENTS
We stand by our products. You can purchase replacement HFM.Parts 324mm Rotors without the adapters for a great price, ready when you need them.

ADDITIONAL NOTES.
(Optional) To get the most out of this kit we recommend you replace the standard brake pads with DB1346 or equivalent brake pads.

Compatibility

Fitment:
Nissan 180SX SR20
Nissan Silvia S13 SR20
Nissan Silvia/200SX S14
Nissan Silvia/200SX S15
Nissan Skyline R32 GTS-T

Requirements:

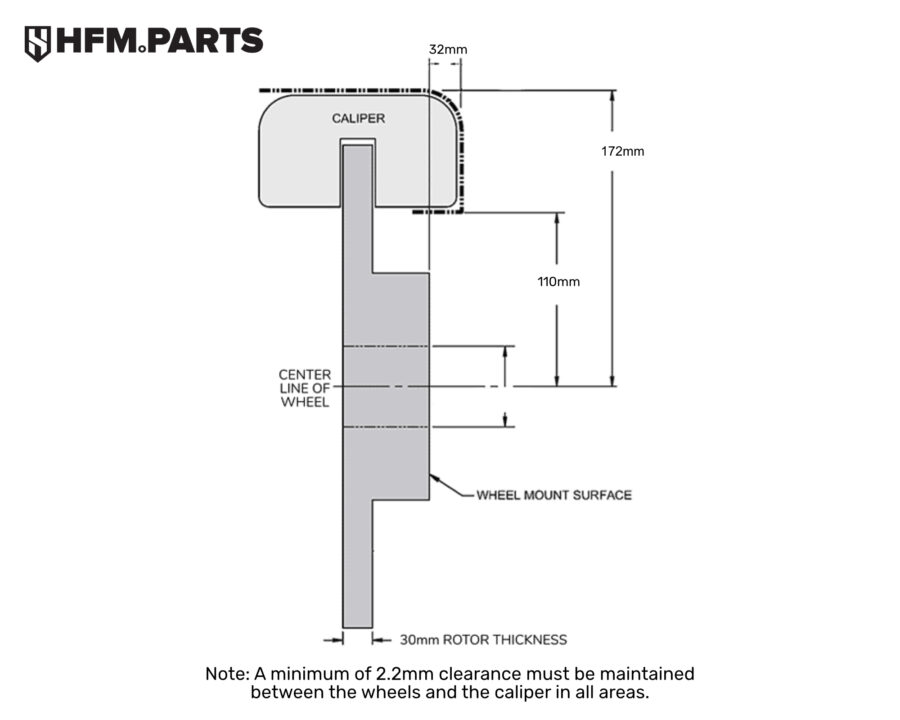

Minimum of 17″ Wheels

S Chassis:
OEM 5 Stud Knuckle
OEM 5 Stud Hub
OEM 4 Piston Caliper

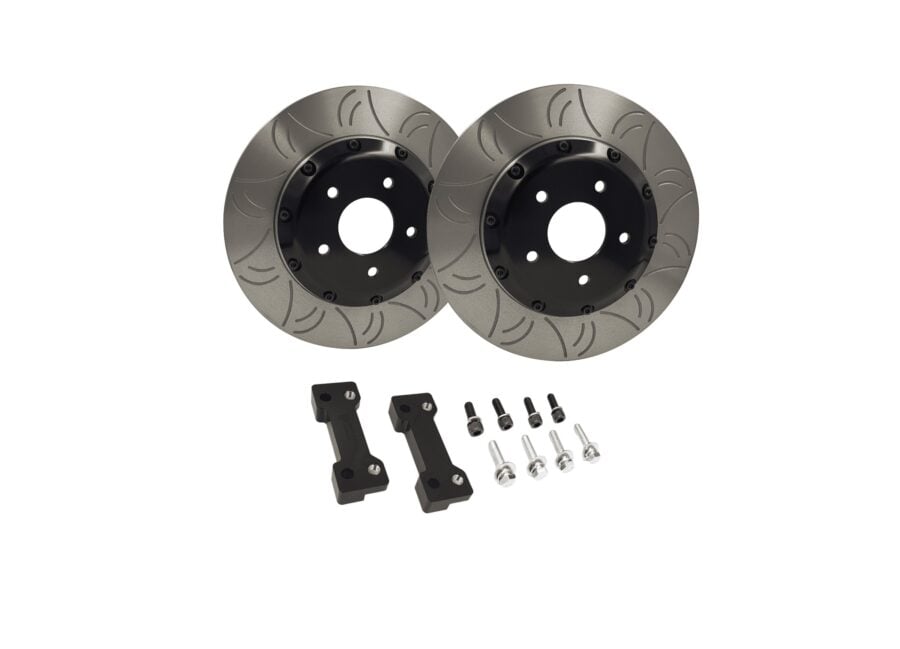

In the Box

1x Pair HFM.Parts 324mm Rotors
1x Pair HFM.Parts Caliper Adapters
High Tensile Nuts & Bolts for Fitment

FAQs

Q. Will this fit my vehicle? A. We have only confirmed fitment for the vehicles mentioned under compatibility. If your vehicle is not listed, then we don't know if it fits. Q. Why do you recommend to use DB1346 brake pads? A. The DB1346 corresponds to a Bendix brake pad, you can purchase any brake pad you like that is the equivalent to this part number. The reason we recommend using that part number is because the pad material sits lower in the caliper opposed to the genuine Skyline brake pad allowing you to get more brake pad coverage across the rotor surface. Q. What will happen if I use standard brake pads? A. With standard brake pads, you will have a 2mm pad overhang. Using BD3146 or equivalent will reduce the overhang. Q.If you stop making these rotors, is there anywhere else I can get them from? A. Yes, these rotors are readily available from most automotive stores. We will continue to produce these rotors and any other products as long as there is a demand. Q. Will these fit my OEM S13, S14, S15, R32 wheels? A.  No, S13 has 15″ wheels and S14, S15 & R32 GTS-T have 16″ wheels as standard.  This kit requires a minimum of 17″ wheels. Q. I have an aftermarket caliper, can I still use this rotor kit? A. No, this brake kit has been designed to suit your OEM caliper. We cannot confirm if it will also suit other calipers. Q. Can I buy the adapters on their own? A. YES! They are available for purchase as a pair from our website. Q. What material are the adapters made from? A. Our adapters are made using high quality T6-6061 Billet Aluminium. Q. If my rotors wear out, can I buy a replacement set? A. Yes, You are able to purchase a pair of rotors without adapters or a pair of rotors without the hats as a cost effective alternative. Q. What is the rotor hat made of? A. High quality T4-2024 Air Craft Aluminium. Q. Do I have to modify any brake components to use this kit? A. No. Q. Are these rotors directional? A. No, you can install them on either side of your car without affecting performance. Q. Can I use this brake kit if I have a 4 stud hub? A. No, you need a 5 stud hub. Q. If I have an aftermarket 5 stud hub on my S13, can I use this brake kit? A. No & Yes. This kit is designed to be fitted on an OEM 5 stud hub. On an S13 knuckle that was originally a 4 stud hub the brake tabs are different thicknesses to an S14/S15 knuckle. You will have a difference of ~3mm and will need to install washers to fill the gap. Q. Why doesn’t the brake pad cover the entire surface of the rotor? A. This kit works by spacing out your existing calipers, which in turn, the brake pads position will follow, to accommodate for the larger rotor. There are no brake pads (that we’re aware of) that will fit within the original caliper and cover more surface area. Q. My rotors arrived pre-assembled, does that mean I can install them right away? A. Although our rotors arrive pre-assembled, we always recommend checking all of the bolts are tight prior to install. We suggest using a torque wrench with settings at 13 – 15 ft lbs.

Install Guides

Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely.
We recommend this product be installed by a competent person. Instructions are given with every order where available, however, If you would like a copy prior to ordering, you're welcome to contact us: Go to Contact Page
