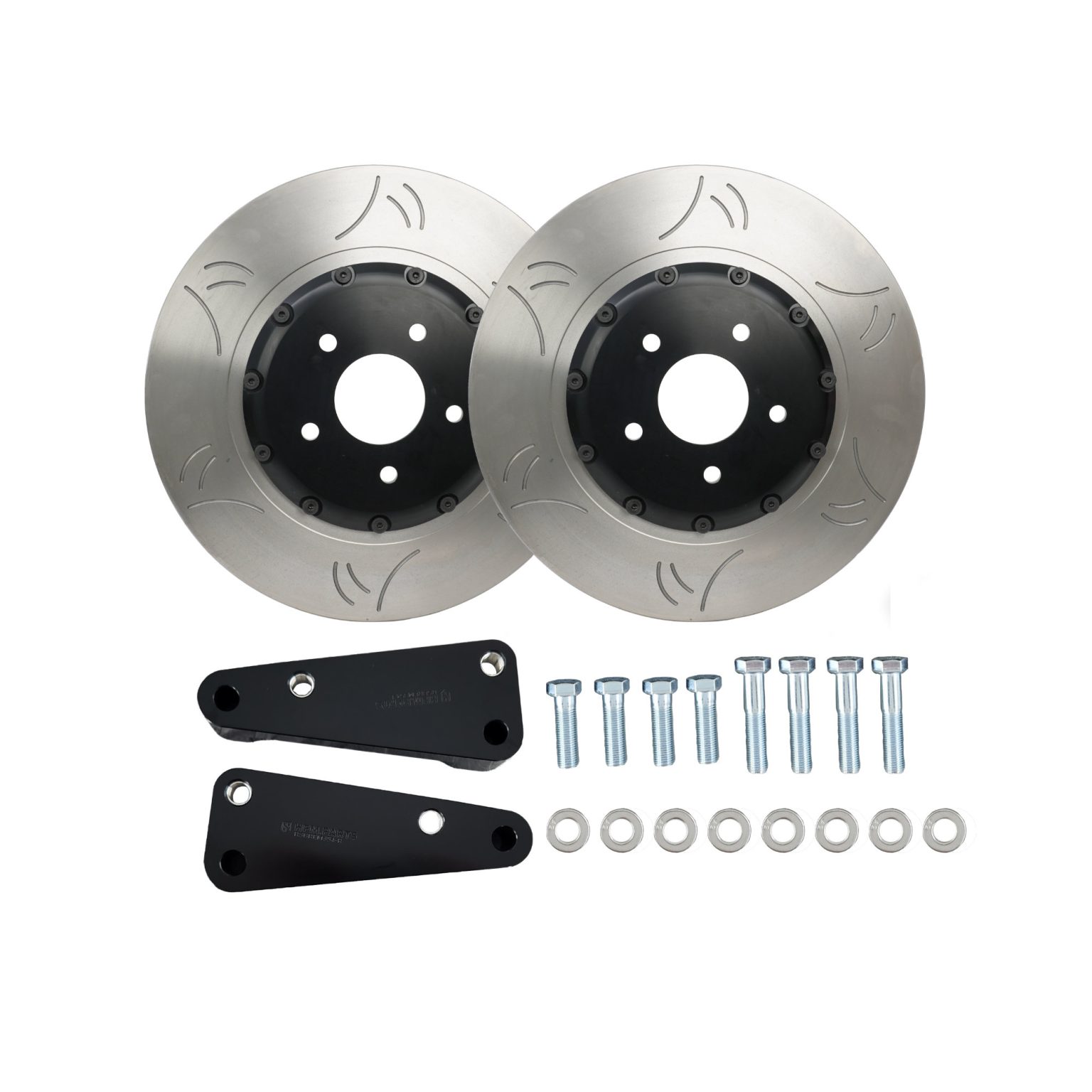

354mm Front Two Piece Rotor Kit for S/R Chassis with Kia Stinger Brembo Calipers

354mm Front Two Piece Rotor Kit

$ 838.00

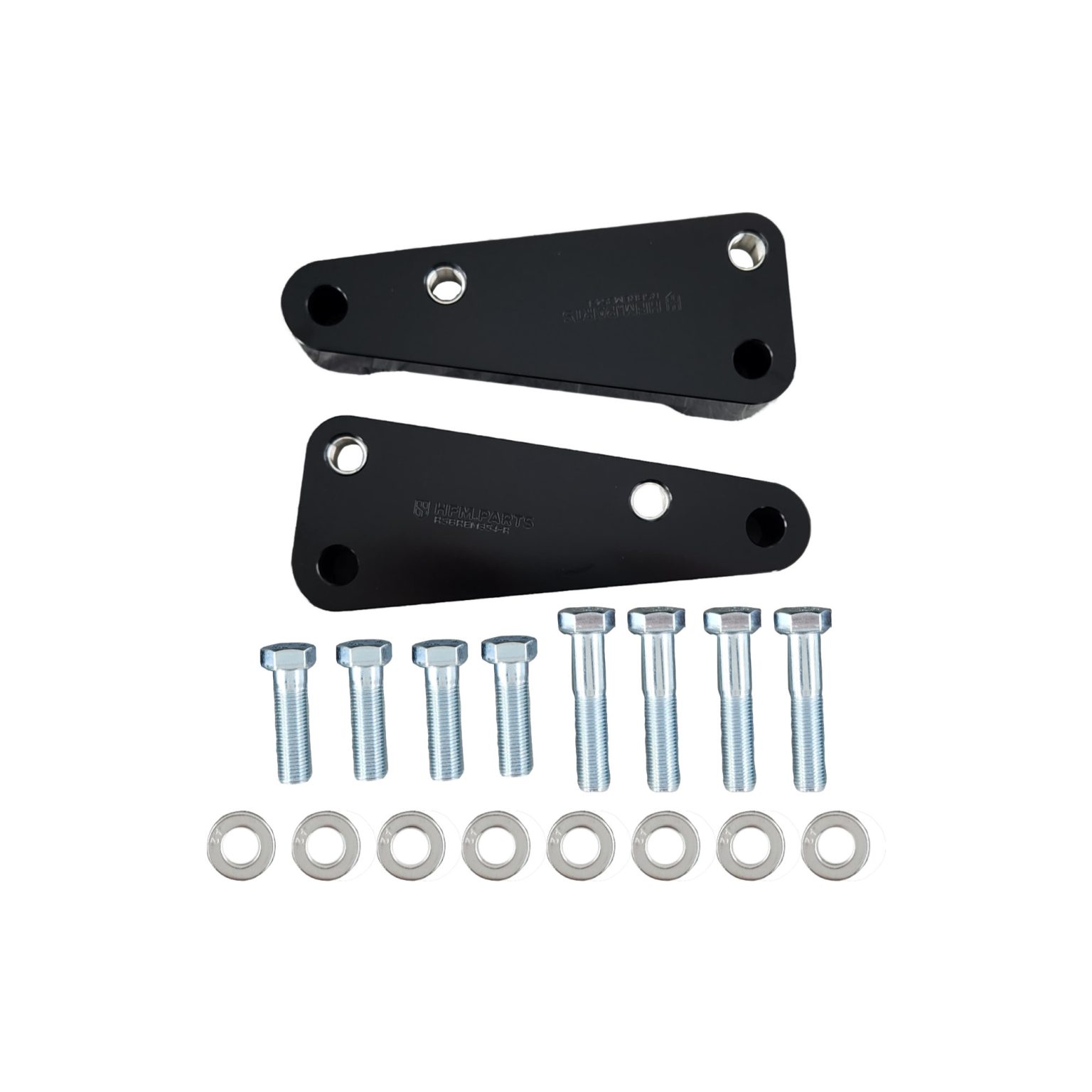

High Quality Billet AdaptorIncrease Rotor Diameter up to 74mm!Uses Kia Stinger Brembo Caliper
Customise your Product

Secure Transaction
Fast Postage
Tracked Shipping

Brembo has always been a popular choice for calipers. In this kit, we have incorporated a readily available Brembo caliper from the Kia Stinger. The 44mm diameter piston size is versatile and suitable for all types of driving, and for some models, it offers a significant upgrade.
This kit provides the following upgrades:
  • S13, S14, S15: 280 to 354mm Front Rotors
  • R32GTS-T: 280 to 354mm Front Rotors
  • R33 GTS-T: 296mm to 354mm Front Rotors
  • R34 GT: 296mm to 354mm Front Rotors
    + Kia Stinger Brembo Caliper with 44mm Diameter Pistons



Compatibility

Key:
Fits
Fits with Minimum Requirements
Does Not Fit
No vehicles found. Try a different search or contact us for help.

In the Box

Here's everything included in your order, so you know exactly what to expect.

FAQs

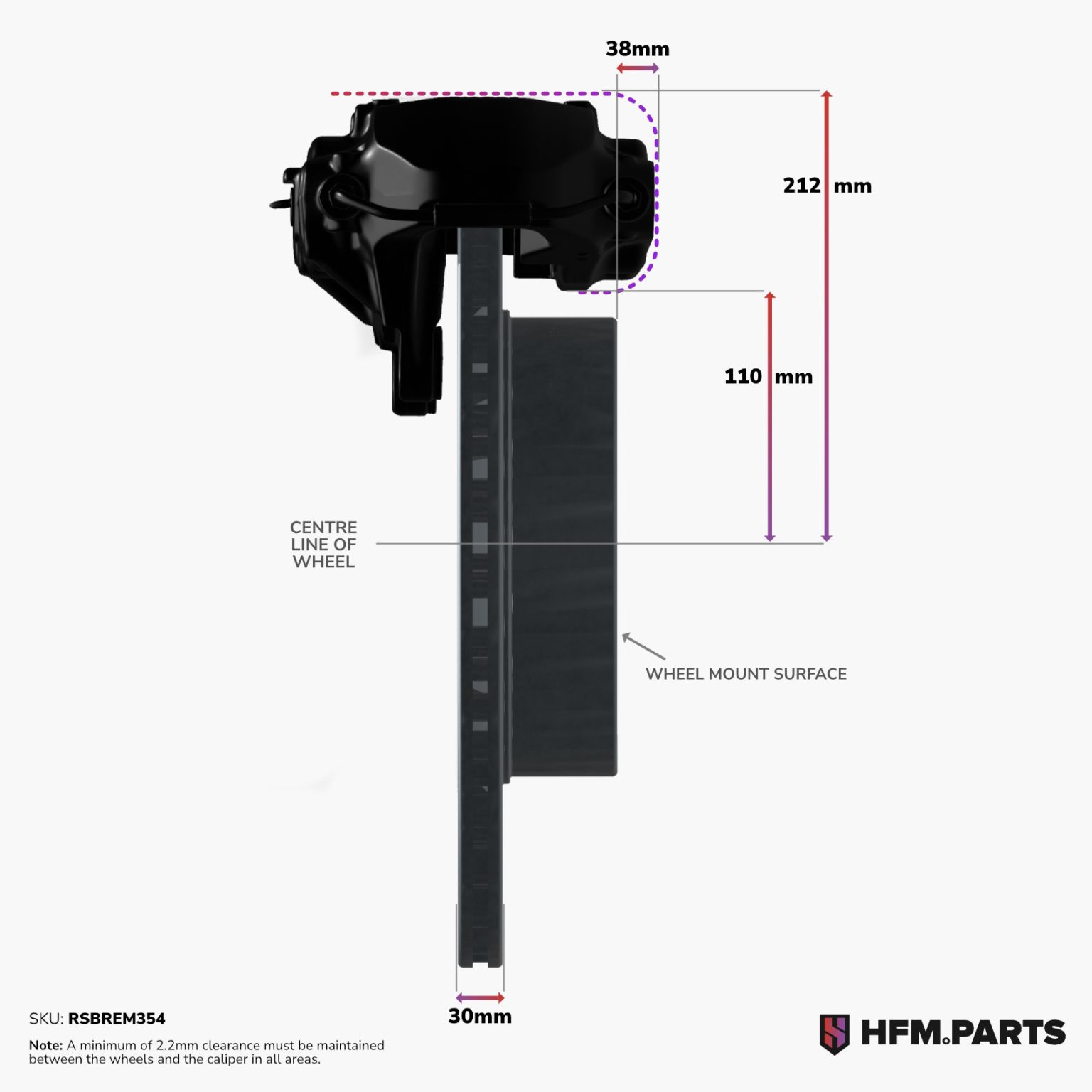

Q. Will this fit my vehicle? A. We have only confirmed fitment for the vehicles mentioned under compatibility. If your vehicle is not listed, then we don't know if it fits. Q. Can I use these adaptor brackets if I have aftermarket lower control arms? A. When installed properly, this adaptor bracket sits close to the lower control arm. In general, if your car retains the OEM stopping position, there should be no interference while using this adaptor. However, we cannot confirm its fitment with any aftermarket products that can change your steering angle. Q. Do I need to get longer brake lines? A. Yes. We recommend replacing your OEM brake lines with longer braided brake lines, such as  HFM.Parts Braided Brake Lines. These can be added to your order as an optional add-on. Q. My S13 only has a 4-stud hub, but your product is for 5-stud hubs. What should I do? A. To use this adaptor bracket, you will need to upgrade to an S14/S15 OEM Knuckle, 5-Stud Hub, and Lower Control arm. Q. How do I get Replacement Rotors? A. This 354mm Rotor is unique to HFM.Parts. You can find replacement rotors here. If you would like to source a rotor locally the measurements needed are: Diameter 354mm, Thickness 30mm and Height 53.8mm, PCD 114.3mm and Centre Bore 68mm.

Install Guides


Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely.
We recommend this product be installed by a competent person. Instructions are given with every order where available, however, If you would like a copy prior to ordering, you're welcome to contact us: Go to Contact Page


hfmparts rotor
The Rotors

Our rotors are designed to enhance braking performance compared to stock options, offering a more responsive feel which can reduce brake fade during demanding driving.

The key to this improvement is a larger diameter design, which increases the overall surface area for better heat dissipation. This upgrade is particularly attractive as it retains your stock calipers (unless mentioned otherwise), keeping the cost down while providing a noticeable improvement in braking performance.

Internal Structure

Our vane design compliments on both structural integrity and heat dissipation. We’ve positioned our vanes to disrupt airflow across the rotor surface, breaking up the boundary layer of hot air. This turbulence promotes efficient heat transfer which reduces brake fade and ensures the drives has consistent stopping power.

hfm parts rotor veins
hfm parts rotor slot design
Slot Design

Our rotors feature a custom slot design that’s consistent across our entire range, ensuring a uniform look and optimal performance on all fronts. Slots actively channel away heat, debris, and gasses from the braking surface.
