324mm Front Brake Upgrade Kit – R34 GTT

324mm Front Brake Upgrade Kit

$ 548.00$ 718.00

Includes Free Shipping
Free Australia Wide Postage on Order $250+
Pickup Available
South Kingsville, VIC 3015 | Ready in 1-2 Hours | Mon - Fri 10am to 4pm
Customise your Product

Inclusions

324mm Front Rotors Suits: R33 GTR, R34 GTR

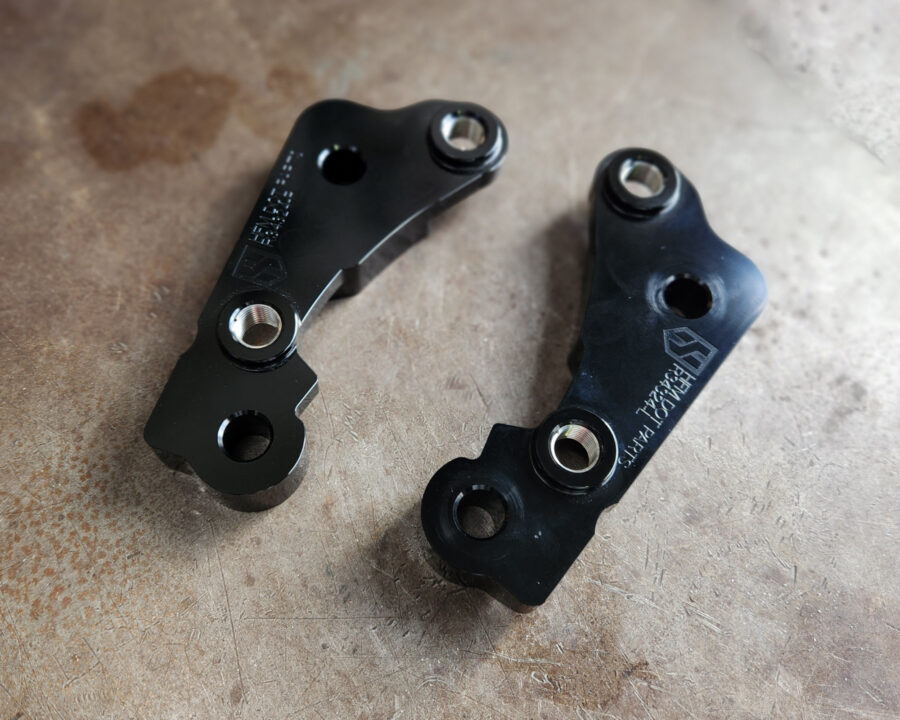

324mm Front Rotor Caliper Adaptor Brackets - R34 GTT (324mm)

$ 189.00
In Stock
Max Available:

Description

Introducing HFM.Parts 324mm Two Piece Rotors, proudly designed in Australia. These impressive rotors boast a unique slot design that matches perfectly with HFM.Parts Rear Rotors. With a 14mm increase in size from the standard OEM 310mm rotors, this upgrade is made possible with HFM.Parts Australian-designed custom caliper adapter set that allows you to use your current OEM caliper. This cost-effective big brake upgrade kit is made using T6-6061 hard anodized billet aluminium, expertly crafted into HFM.Parts Caliper Adapters and fitted with stainless steel Heli-Coils to maintain strength. The rotor surface features indentations with a slight curvature to improve cleaning and ventilation, while the black anodized aluminium hat adds to the overall look and performance of the rotor.

DIMENSIONS.
Diameter 324 mm
Height 53.8 mm
Thickness 30 mm
Minimum Thickness 28 mm
Centre Hole 68 mm
Stud Holes 5
Weight 7.4kg/rotor

REPLACEMENTS
We stand by our products. You can purchase replacement HFM.Parts 324mm Rotors without the adapters for a great price, ready when you need them.

ADDITIONAL NOTES.
(Optional) To get the most out of this kit we recommend you replace the standard brake pads with DB1346 or equivalent brake pads.

hfmparts rotor
The Rotors

Our rotors are designed to enhance braking performance compared to stock options, offering a more responsive feel which can reduce brake fade during demanding driving.

The key to this improvement is a larger diameter design, which increases the overall surface area for better heat dissipation. This upgrade is particularly attractive as it retains your stock calipers (unless mentioned otherwise), keeping the cost down while providing a noticeable improvement in braking performance.

Internal Structure

Our vane design compliments on both structural integrity and heat dissipation. We’ve positioned our vanes to disrupt airflow across the rotor surface, breaking up the boundary layer of hot air. This turbulence promotes efficient heat transfer which reduces brake fade and ensures the drives has consistent stopping power.

hfm parts rotor veins
hfm parts rotor slot design
Slot Design

Our rotors feature a custom slot design that’s consistent across our entire range, ensuring a uniform look and optimal performance on all fronts. Slots actively channel away heat, debris, and gasses from the braking surface.

Compatibility

Requirements:

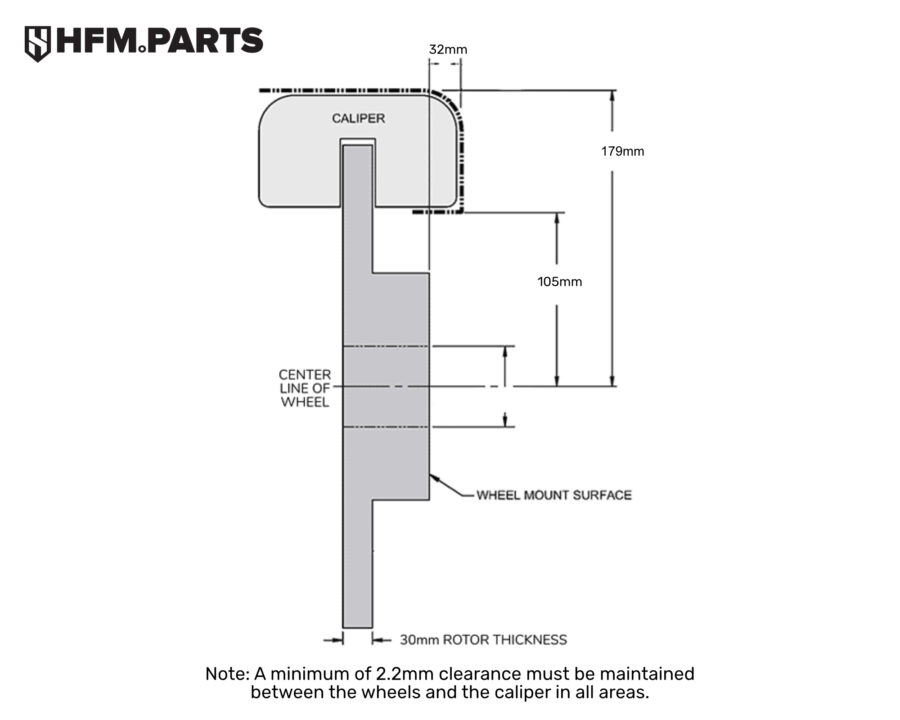

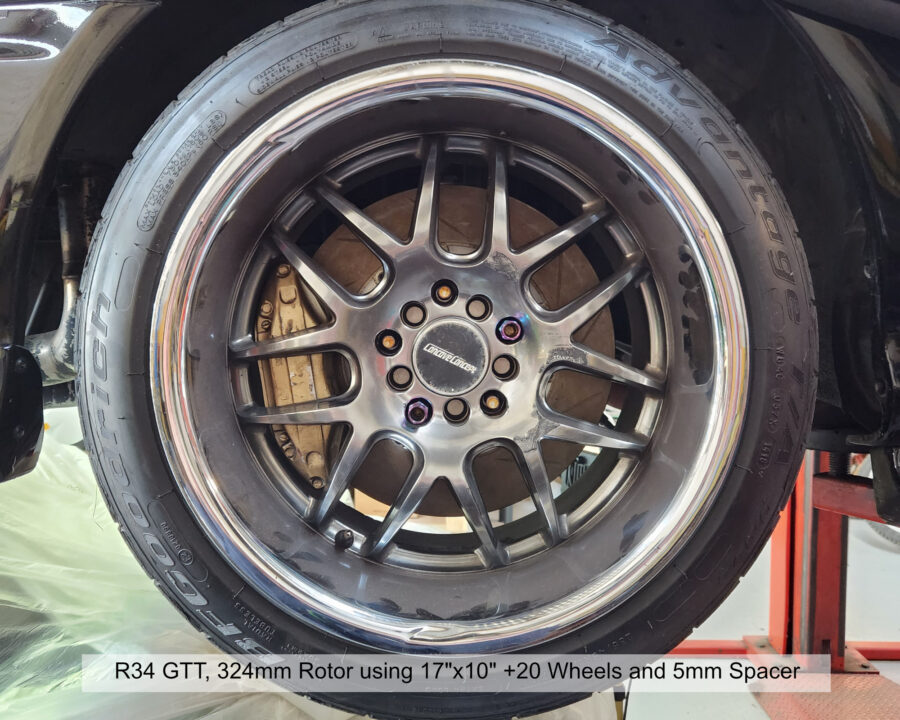

Minimum 17″ Wheels
OEM R34 GTT Calipers

*Suited only to R34 GTT’s with 310mm rotors and M14 caliper bolt holes as standard.

Make sure your vehicle meets the minimum requirements, listed comptibility alone does NOT guarantee fitment.
Vehicles
Make
Nissan
Model
Skyline R34 GTT
Production
1998 - 2002
Our compatibility list is based on original equipment manufacturer (OEM) specifications. While we strive for accuracy, variations may exist due to vehicle sub-models or other factors. To ensure correct fitment, please verify compatibility with your vehicle before purchasing. You can also check your exact model against https://www.wheel-size.com/

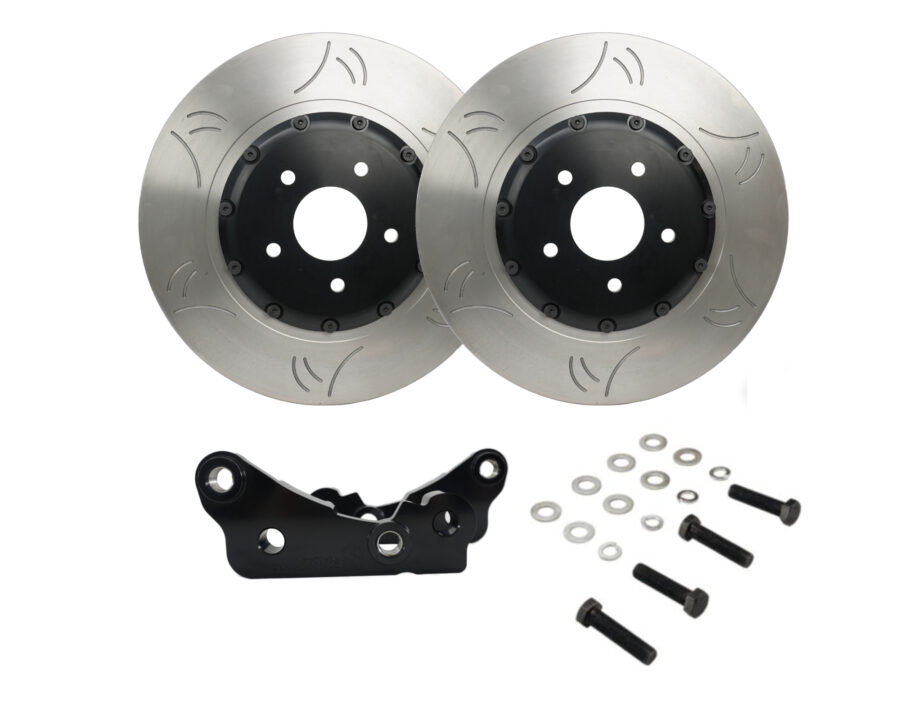

In the Box

1x Pair of HFM.Parts 324mm Two Piece Rotors
1x Pair of HFM.Parts Caliper Adapters
High Tensile Nuts & Bolts for Fitment

Install Video

FAQs

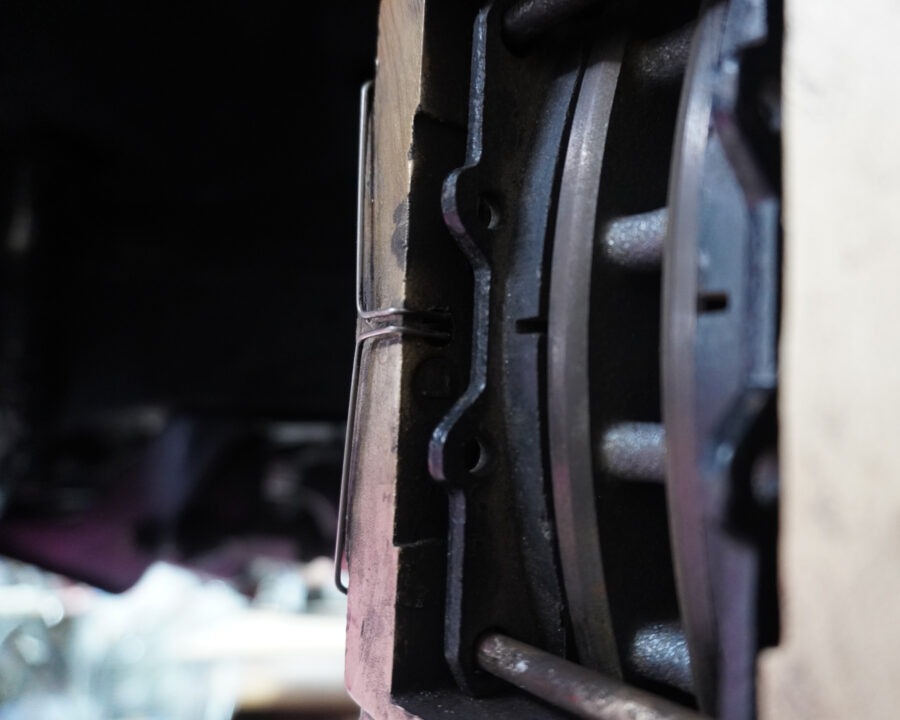

Q. Will this fit my vehicle? A. We have only confirmed fitment for the vehicles mentioned under compatibility. If your vehicle is not listed, then we don't know if it fits. Q. Are there any modifications that need to be done to fit the adaptor? A. Yes, you are required to linish/polish the caliper or knuckle side to avoid binding. Please refer to the installation video/guide for assistance. Q. Will the brake pads cover the entire rotor surface, or will I have “Pad Overhang”? A. There will be ~1-2mm of pad overhang; please refer to the reference photo above. This is because the adaptor works by spacing out your existing calipers, which in turn, the brake pads position will follow, to accommodate the larger rotor. There are no brake pads (that we’re aware of) that will fit within the original caliper and cover more surface area. Q. Can I use these adaptor brackets if I have aftermarket lower control arms? A. When installed properly, this adaptor bracket sits close to the lower control arm. In general, if your car retains the OEM stopping position, there should be no interference while using this adaptor. However, we cannot confirm its fitment with any aftermarket products that can change your steering angle. Q. Do I need to get longer brake lines, or can I use the OEM lines? A. While you can retain your OEM brake lines, they will likely be at full extension. We recommend replacing your OEM brake lines with longer braided brake lines.

Install Guides


Disclaimer

Modifying vehicles is a specialist task and requires the knowledge and experience of competent individuals to be conducted safely.
We recommend this product be installed by a competent person. Instructions are given with every order where available, however, If you would like a copy prior to ordering, you're welcome to contact us: Go to Contact Page
