340mm Rear Brake Upgrade Kit – S/R Chassis
340mm Rear Brake Upgrade Kit
From: $ 519.00
Some calipers are hard to find, HFM.Parts have created a rear brake kit for S/R chassis that utilises the more readily available 350Z Brembo calipers. This is made possible with HFM.Parts Australian designed and developed billet aluminium caliper adaptor set. The rotors have a visually stunning slot design and a black-painted hub to match all HFM.Parts Front Rotors. The rotors are larger allowing for better heat dissipation, vented for increased ventilation and the curved indentations improve brake pad cleaning ability.
This kit provides the following upgrades:
S Chassis: 258mm to 340mm Rear Rotors
R Chassis: 297mm to 340mm Rear Rotors
R Chassis GTR: 300mm to 340mm Rear Rotors
With 350Z Rear Brembo Calipers
Weight: 8.6kg/rotor
TIP!
Use 350Z Brembo Front Calipers and drill out the knuckle holes from M12 to M14 for a super easy front brake upgrade, then match this rear kit with HFM.Parts Front Two Piece Rotors for 350Z.
Our rotors are designed to enhance braking performance compared to stock options, offering a more responsive feel which can reduce brake fade during demanding driving.
The key to this improvement is a larger diameter design, which increases the overall surface area for better heat dissipation. This upgrade is particularly attractive as it retains your stock calipers (unless mentioned otherwise), keeping the cost down while providing a noticeable improvement in braking performance.
Our vane design compliments on both structural integrity and heat dissipation. We’ve positioned our vanes to disrupt airflow across the rotor surface, breaking up the boundary layer of hot air. This turbulence promotes efficient heat transfer which reduces brake fade and ensures the drives has consistent stopping power.
Our rotors feature a custom slot design that’s consistent across our entire range, ensuring a uniform look and optimal performance on all fronts. Slots actively channel away heat, debris, and gasses from the braking surface.
Compatibility
- 1x Pair of rear Brembo 350Z Calipers
- Remove/modify the backing plate to accommodate the larger rotor.
- S-Chassis, you must convert to R-Chassis components as follows: 5-Stud Hub and Hand Brake Cables and shoes.

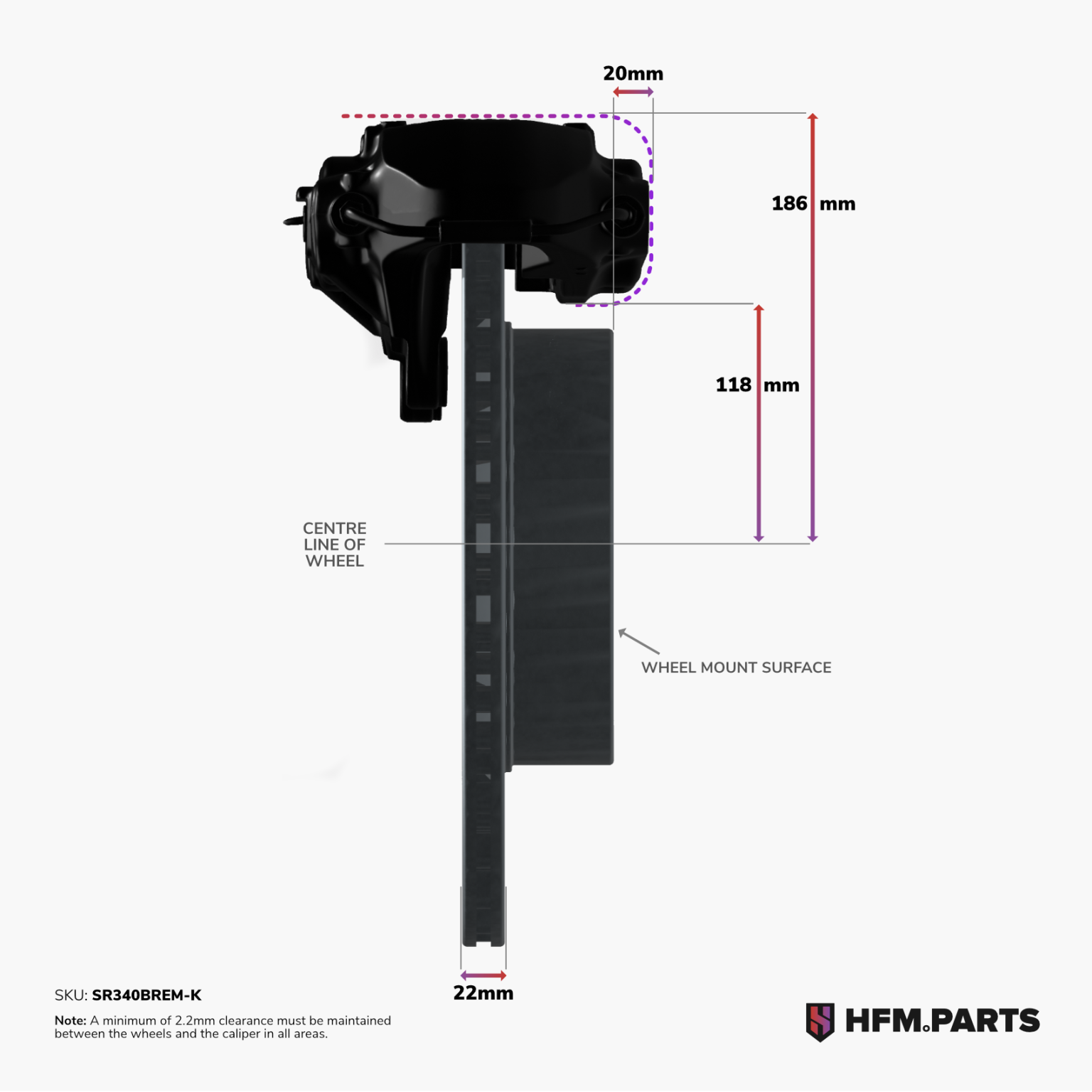

- Minimum Wheel Size 18″
While not necessary, we always recommend upgrading to braided brake lines.
 | Make Nissan | Model 180SX SR20 | Production 1991 - 1999 | |||
 | Make Nissan | Model Silvia S13 SR20 | Production 1991 - 1993 | |||
 | Make Nissan | Model Silvia/200SX S14 | Production 1993 - 2000 | |||
 | Make Nissan | Model Silvia/200SX S15 | Production 2000 - 2002 | |||
 | Make Nissan | Model Skyline R32 GTR | Production 1989 - 1994 | |||
| Make Nissan | Model Skyline R32 GTS-T | Production 1989 - 1994 | |||
 | Make Nissan | Model Skyline R33 GTR | Production 1993 - 1998 | |||
| Make Nissan | Model Skyline R33 GTS-T | Production 1993 - 1998 | |||
 | Make Nissan | Model Skyline R34 GTR | Production 1998 - 2002 | |||
| Make Nissan | Model Skyline R34 GTT | Production 1998 - 2002 | |||
| Nissan 300ZX Z32 | ||||||

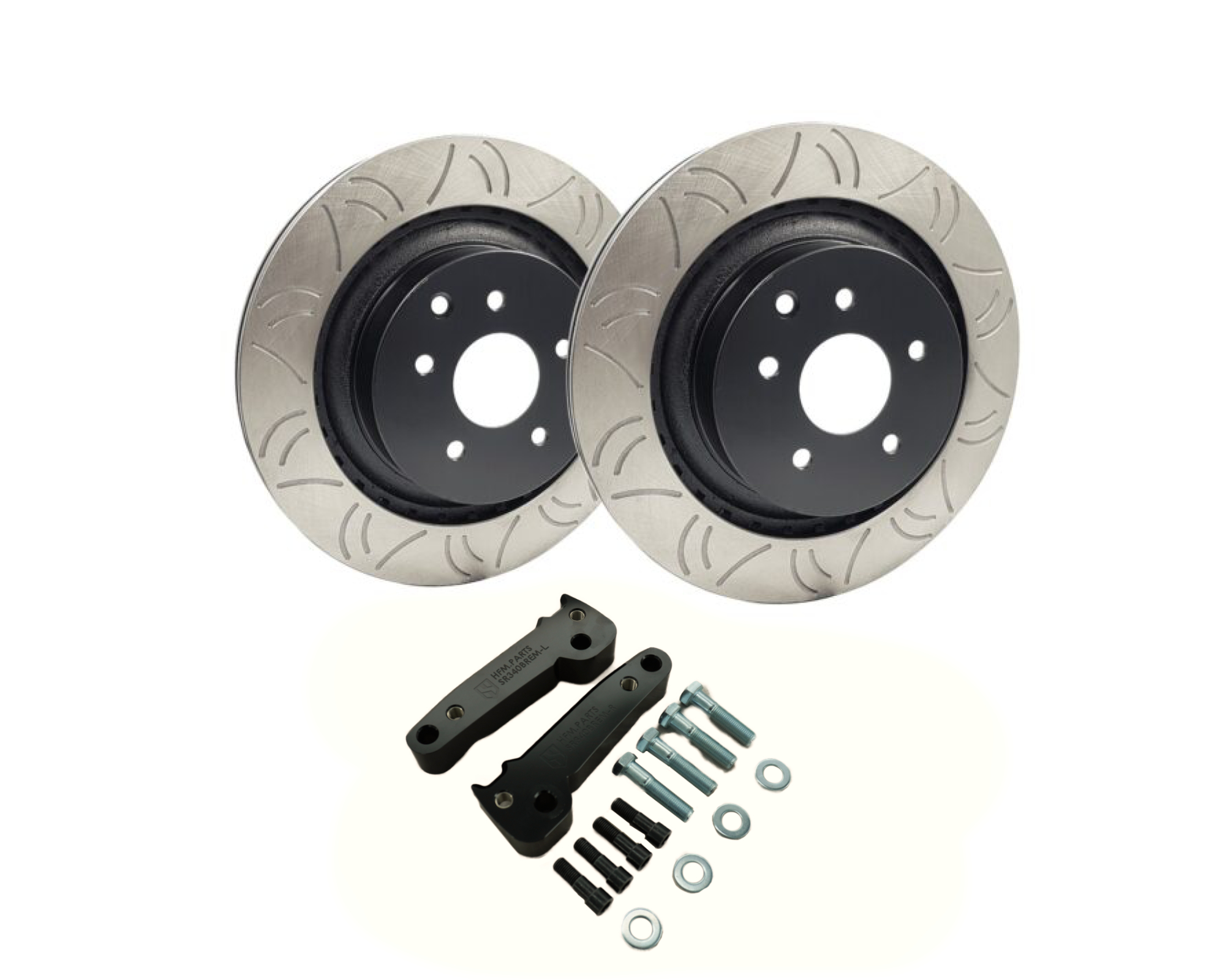

In the Box
1x Pair HFM.Parts 340mm Rear Rotors

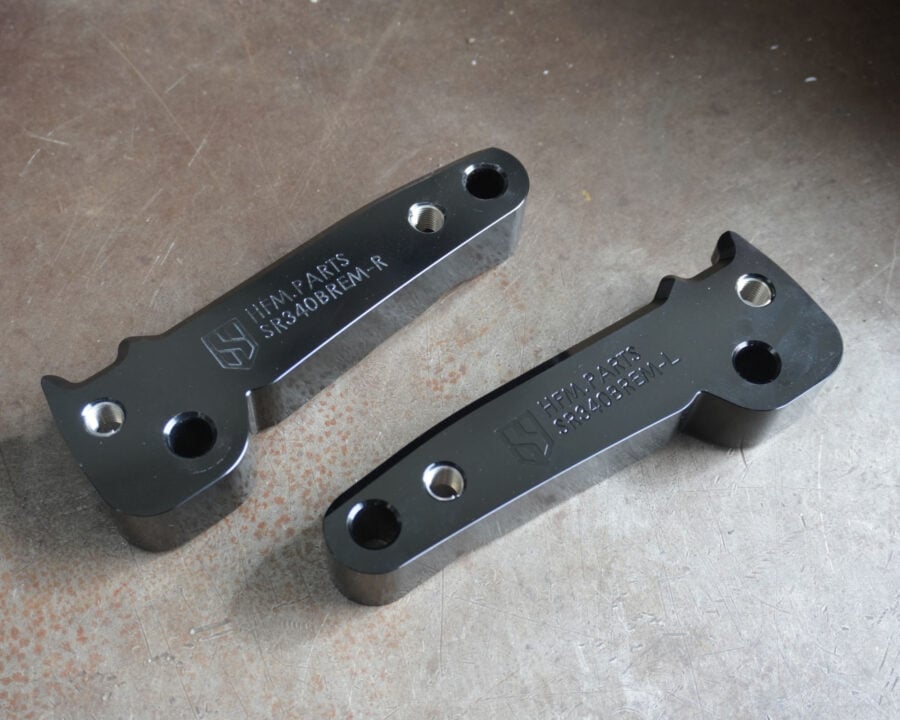

1x Pair HFM.Parts Caliper Adapters

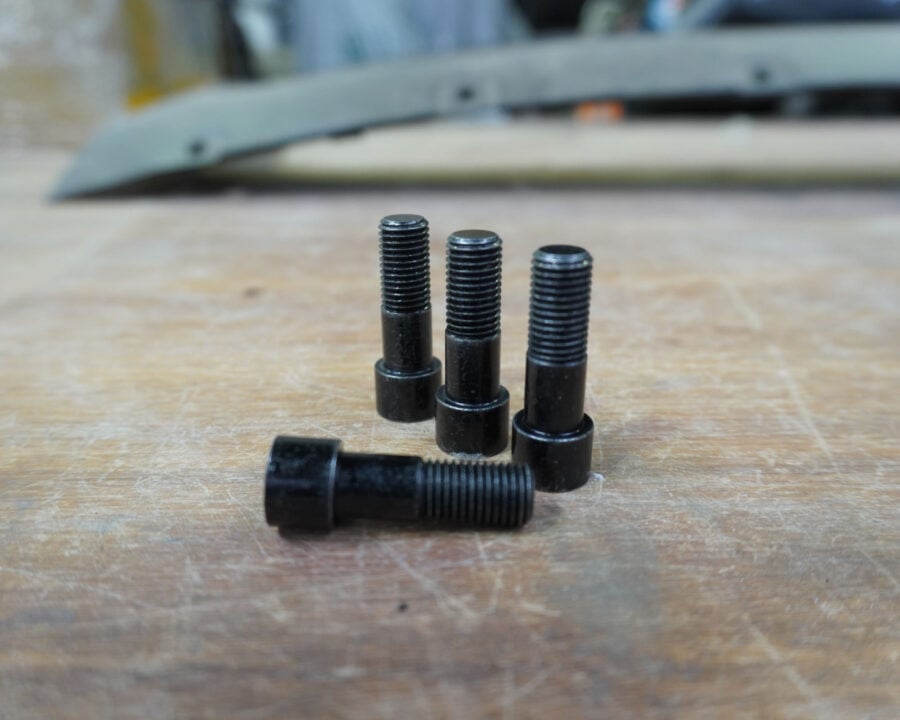

4x HFM.Parts Custom Shoulder Bolts
High Tensile Nuts & Bolts for Fitment
Optional:
HFM.Parts Braided Brake Lines
HFM.Parts 324mm Front Two Piece Rotors for 350Z*
*See tip above. If unsure, please ask.
Install Video
FAQs
Install Guides
Modifying vehicles is a specialist task and requires the knowledge and experience of competent
individuals to
be conducted safely.
We recommend this product be installed by a competent person. Instructions are given with every
order
where
available, however, If you would like a copy prior to ordering, you're welcome to contact us: Go to Contact Page
