354mm Kia Stinger Brembo Caliper Brackets for S/R Chassis

Suits: Nissan Silvia S13, S14, S15, Skyline R32 GTS-T, R33 GTS-T, R34 GT with Kia Stinger Brembo 4-piston front calipers (minimum 18" wheels)

Run Kia Stinger Brembo calipers over 354mm rotors on your Silvia or Skyline. A billet bracket for a bigger front brake.

Steps up from 280mm or 296mm to 354mm front rotors
Suits Kia Stinger 4-piston Brembo calipers (44mm pistons)
T6-6061 billet aluminium, hard anodised, with Heli-Coils
Sold as a pair with M12 bolts and washers

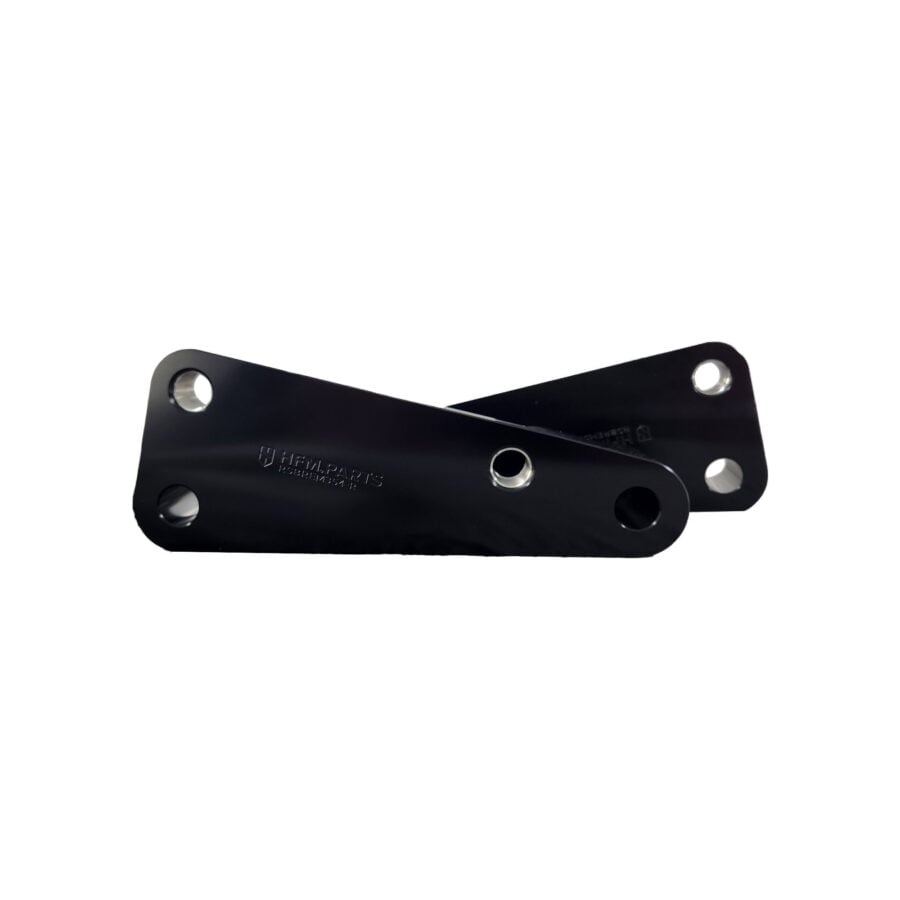

354mm front rotor caliper adaptor bracket for s/r chassis with kia stinger brembo calipers

RSBREM354

★ 4.9 98 reviews

$239.00 AUD

In Stock · Ships Monday

Extras

354mm Front Two-Piece Rotors for R33 GTR In stock GTR3545330 $749.00 AUD

Front Hard Line Delete Brake Lines for S13, S14, S15 In stock HFM-FBL-S $142.00 AUD

Front Braided Brake Lines for R33 GTS-T & R34 GT/GTT In stock HFM-FBL-R33 $259.00 AUD

Check your fitment

Overview

Why upgrade

Kia Stinger Brembo calipers are 4-piston and easy to find. These brackets mount them over 354mm rotors on S-chassis Silvias and R-chassis Skylines. They’re machined from T6-6061 billet aluminium, hard anodised, and fitted with stainless steel Heli-Coils so the threads hold up over repeated fitting and removal.

Will it fit my car?

Front rotor size, stock to upgraded:

Silvia S13, S14, S15	280mm to 354mm
Skyline R32 GTS-T	280mm to 354mm
Skyline R33 GTS-T	296mm to 354mm
Skyline R34 GT	296mm to 354mm

You’ll also need:

A pair of Kia Stinger Brembo front calipers (2018–2025, 44mm pistons). Check the casting number reads 2004420400 or 2004420300.
HFM.Parts 354mm front two-piece rotors (GTR3545330). This 354mm rotor is unique to HFM.Parts.
18″ wheels or larger
Longer braided brake lines, as the factory lines sit at full extension

S13: these brackets suit 5-stud hubs. Upgrade to the factory S14 / S15 knuckle, 5-stud hub and lower control arm first.

R34 GT: your knuckle needs M12 caliper bolt holes.

The backing plate may need to be modified or removed to clear the larger rotor.

Specifications

Upgrade	280mm or 296mm to 354mm front rotors
Bracket material	T6-6061 billet aluminium, hard anodised
Thread inserts	Stainless steel Heli-Coils
Calipers	Kia Stinger Brembo 4-piston, 44mm pistons (2018–2025, casting 2004420400 or 2004420300)
Rotors	HFM.Parts 354mm two-piece (GTR3545330)
Rotor size	354mm diameter, 30mm thick, 53.8mm height, 114.3mm PCD, 68mm centre bore
Wheel size	18″ minimum
Bolt torque	58–62 ft-lb
Position	Front
Sold as	Pair (left and right)

Fitting

Clean any dirt and rust off the hub face first, or the rotor can run out. Bolt the adaptor to the inside of the knuckle with the M12 x 1.25 x 40mm bolts and washers, then fit the rotor and the caliper with the longer M12 bolts. Use Loctite 242 or equivalent on all bolts and torque to 58–62 ft-lb. Full steps are in the RSBREM354 adaptor and brake kit install guide.

We recommend installation by a licensed mechanic.

Pairs with

354mm Rotor Upgrade: Massive increase in braking torque (up to 74mm).
Kia Stinger Caliper Fitment: Utilises readily available 4-piston Brembos
Billet T6-6061 Aluminium: Hard anodised for exceptional strength.
Stainless Steel Heli-Coils: Ensures thread durability and longevity.

Free AU shipping over $250

In-stock orders dispatched within 24 hours from Melbourne.

2-year warranty

Every part covered against defects from day one. We repair, replace, or refund — your call.

30-day returns

Faulty part? Free return, full refund. Changed your mind? Full store credit, no fees deducted.

Ships worldwide

International shipping available to most countries. Rates calculated at checkout.

In the box

What's Included

2× Caliper adaptor bracket (left and right)
4× M12 x 1.25 x 40mm hex bolt
4× M12 x 1.25 x 55mm hex bolt
8× Flat washer

Community

Customer Installs

Installs of this part — and similar parts in this category.

326mm front brake package suits: subaru brz zd8 2022

HFM.Parts 326mm Caliper Adaptor Package (Brackets & Braided Lines) for Wilwood Calipers, Subaru BRZ ZD8

324mm rotor caliper adapter bracket suits: caliper p/n 120 11573

HFM.Parts 324mm Rotor Caliper Adapter Brackets for Wilwood 120-11573 & 120-11133 Calipers, Nissan Silvia S13, S14 & S15

354mm front two piece rotor kit: r34 gtt, r33 gtst utilising akebono calipers

HFM.Parts 354mm Front Caliper Adaptor Brackets for Nissan Skyline R34 GTT (370Z Akebono Calipers)

350mm rear rotor caliper adaptor bracket s/r chassis with 370z akebono caliper

HFM.Parts 350mm Rear Caliper Adapter Brackets for Nissan Silvia S13 / S14 / S15 / 180SX & Skyline R32 / R33 / R34 with 370Z Akebono or Infiniti Calipers

Product Information

Will it fit your car?

Find your car in the list below and add it to your garage. Every part page then checks it for you.

Fits 6 vehicles across 2 models

Nissan Silvia3

S13, PS13

Nissan Silvia/240SX S13 SR20DE · SR20DET · KA24E · KA24DE · 1988–1994

1988–1994

S14

Nissan Silvia/200SX/240SX S14 SR20DE · SR20DET · KA24DE · 1993–2000

1993–2000

S15

Nissan Silvia/200SX S15 SR20DE · SR20DET · 1999–2002

1999–2002

Nissan Skyline3

HCR32

Nissan Skyline R32 GTS-T RB20DET · 1989–1993

1989–1993

ECR33

Nissan Skyline R33 GTS-T RB25DET · 1993–1998

1993–1998

ER34, HR34

Nissan Skyline R34 GT RB25DE · RB20DE · 1998–2001

1998–2001

We have only confirmed fitment for the vehicles mentioned under compatibility. If your vehicle is not listed, then we don't know if it fits.

Fitted correctly, the bracket sits close to the lower control arm. If your car keeps the factory steering lock, there should be no interference. We can't confirm fitment with aftermarket parts that change your steering angle.

Yes. The factory lines sit at full extension with this setup, so fit longer braided lines. We make them for the S-chassis, R32 GTS-T and R33 GTS-T and R34.

These brackets suit 5-stud hubs. Upgrade to the factory S14 / S15 knuckle, 5-stud hub and lower control arm first.

Yes, as long as your front knuckle has M12 caliper bolt holes.

The 2018–2025 Kia Stinger front Brembo 4-piston calipers with 44mm pistons. Check the casting number reads 2004420400 or 2004420300. Calipers aren't included.

This 354mm rotor is unique to HFM.Parts. Replacements are sold here (GTR3545330). To source one locally you need: 354mm diameter, 30mm thick, 53.8mm height, 114.3mm PCD and 68mm centre bore.

18" or larger.
