BM57 Brake Master Reservoir Relocation Kit
Suits: HFM.Parts BM57 brake master cylinder, RHD and LHD (Nissan Skyline, Silvia, 180SX, 240SX and 300ZX Z32)
Put your BM57 reservoir where it suits your engine bay, away from the heat. Built for engine swaps and custom engine bays.
- Two 25cm EPDM hoses you can cut to length
- Billet T6-6061 aluminium fittings and EPDM grommets
- Uses your existing BM57 reservoir
- No bracket, so you choose the mounting spot
$119.00 AUD
Requirements
What it’s for
An engine swap or a custom engine bay can leave the BM57 reservoir sitting in the way, or close to heat. This kit moves the reservoir off the master cylinder and onto a spot of your choosing, connected by two brake fluid resistant EPDM hoses.
Getting the reservoir away from the heat helps stop the fluid heat-soaking.
Will it fit?
The kit is designed for the HFM.Parts BM57, RHD and LHD. It reuses your existing BM57 reservoir. The master cylinder and reservoir are not included.
There’s no bracket in the kit. Every engine bay is different, so you choose where the reservoir goes and how it mounts.
Thinking of using it with another master cylinder or reservoir? Check the hose end and grommet sizes below against your parts.
Specifications
| Suits | HFM.Parts BM57 brake master cylinder (RHD and LHD) |
|---|---|
| Hose length | 25cm each, can be cut shorter |
| Hose material | EPDM, brake fluid resistant |
| Straight hose end | 10mm ID |
| Elbow hose end | 15mm ID |
| Grommet hole size | 20mm |
| Fittings | Billet aluminium (T6-6061) |
| Clamps | E-coated metal |
| Not included | Brake master cylinder, reservoir, mounting bracket |
Fitting
Pick your reservoir mounting spot and bracket first, then cut the hoses to length. Fit the grommets and fittings, and secure each hose with the supplied clamps.
Bleed the brakes once it’s all connected, then check the hoses, clamps and grommets for leaks before driving. Our BM57 install guide covers the master cylinder itself.
We recommend installation by a licensed mechanic.
Pairs with
- BM57 brake master cylinder (RHD)
- BM57 brake master cylinder (LHD)

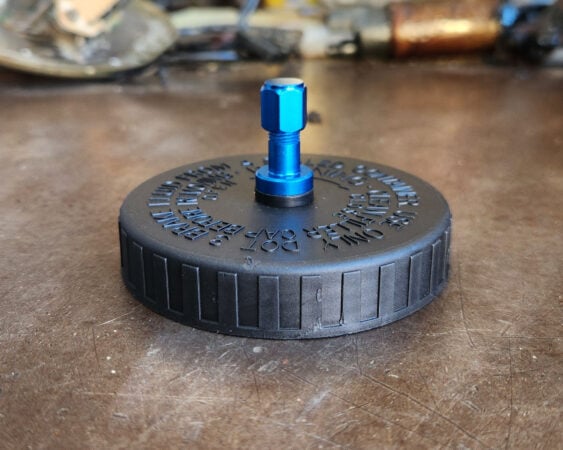

- Brake master bleeder cap, 75mm x 3mm: one-person bleeding, suits the BM57
- Caliper speed bleeder valve M10 x 1.0mm
Sizing:
Hose Length – 25cm
Grommet Hole Size – 20mm
Straight Hose End – 10mm ID
Elbow Hose End – 15mm ID
- Adjustable Hose Length
- Billet Aluminium Fittings (T6-6061)
- Prevents Heat-Soaking
What's Included
-
2× EPDM hoses (25cm)
-
4× E-coated metal clamps
-
2× EPDM grommets
-
2× Billet aluminium fittings (T6-6061)
Customer Installs
Reuses your BM57 reservoir. Master cylinder, reservoir and mounting bracket not included.
| Vehicle | Years | Requirements | ||
|---|---|---|---|---|
|
|
Universal Fit
|
|
||
| Loading vehicle data… | ||||
| No vehicles match. Contact us for help. | ||||
Our compatibility list is based on OEM specifications. Variations may exist due to vehicle sub-models or other factors — verify fitment before purchasing.
