- Remove Caliper and rotor from the original position. You may need to peel back or remove the outer edges of the backing plate.
- Make sure to install the Caliper Adapter to the stub axle first using the bolts supplied. It is recommended to use a good thread-type sealant as well. We recommend Loctite 262 or equivalent.
Please Note: There are two types of bolts supplied.
When fitting the adapter to the Stub Axle, use the Cap Head Bolts.
Then when re-installing the Caliper to the Adapter, use the Hex Head Bolts

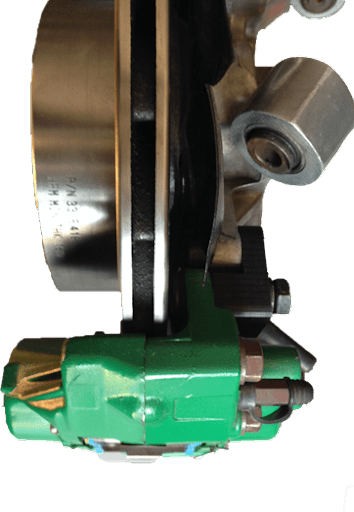

Install the adapter to the inside of the knuckle, as shown here on the left.
